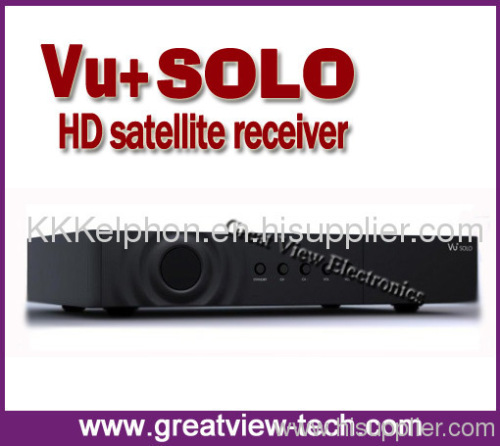

VU+ SOLO HD satellite receiver
1.Linux operating system (Enigma2)
2.Broadcom Mips Processor
3.HDMI+ ETHERNET+ 2 USB+ 2CI+CA



High Distinctions of Vu+ SOLO

Reliable HD Zapper based on the Linux TV APIs

Comprehensive H/W and S/W features at an affordable price

Unfailing H/W and S/W.



MAIN Features 2:

DVB-S2 Single Tuner HD Zapper with PVR ready function

Linux Operating System

1 x Smartcard-Reader

2 x Common Interface

2 x USB2.0

10/100Mbit Ethernet Interface

Advance EPG (electronic program guide)

Full automatic service scan

Multimedia plug-in support

Various OSD skin supported

Low deep standby power consumption under 1.0 W



Accessory: User Manual, Remote control, RS232 cable, HDMI cable, RCA cable etc.



Front Smart card slot (Xcrypt embeded) 1
Panel Common Interface 2
USB 2.0 1
Key Standby, Vol –/+, Ch –/+
Rear Sat-IF input 1 x F-type socket
Panel Connection TV/VCR 1 x Scart socket
Video output (analogue) 3 x Cinch socket (YPbPr)/1 x Cinch-socket
Video/audio output (digital) 1 x HDMI
Audio output (analogue) 2 x Cinch socket
Audio output (digital) Standard optical (SPDIF)
USB 2.0 1 x USB 2.0
Ethernet 1
RS 232 1
Power Mains voltage 100-240/50-60 V/Hz
Power consumption 35/12/0.5W
(Max./typ. operation/stand-by)
RF RF range 950-2150 MHz
Modulation, FEC, de-multiplexer DVB-S/DVB-S2 standard
Video Video resolution CCIR 601 (720 x 576 lines), 576p, 720p, 1080i
Video decoding MPEG-2, MPEG-4 compatible
Input data rate 2-45 MSymb/s
S/N > 53 dB
Decoding Decoding Dolby Digital, MPEG-4 (AAC-HE), MPEG-1, Layer 1, 2 and 3
Sampling rate 32/4.1/48 kHz
S/N > 65 dB
LNB LNB supply (horiz./vert.) 13/18V ;Max. 500mA
Control signal 22kHz ; ToneBurst ; DiSEqCTM1.0/1.1/1.2
General Dimensions (W x H x D) 280 x 50 x 200 mm
Weight (without HDD) App. 1.42kg
